| Benefits | Vehicle |
|---|---|
 |
 |

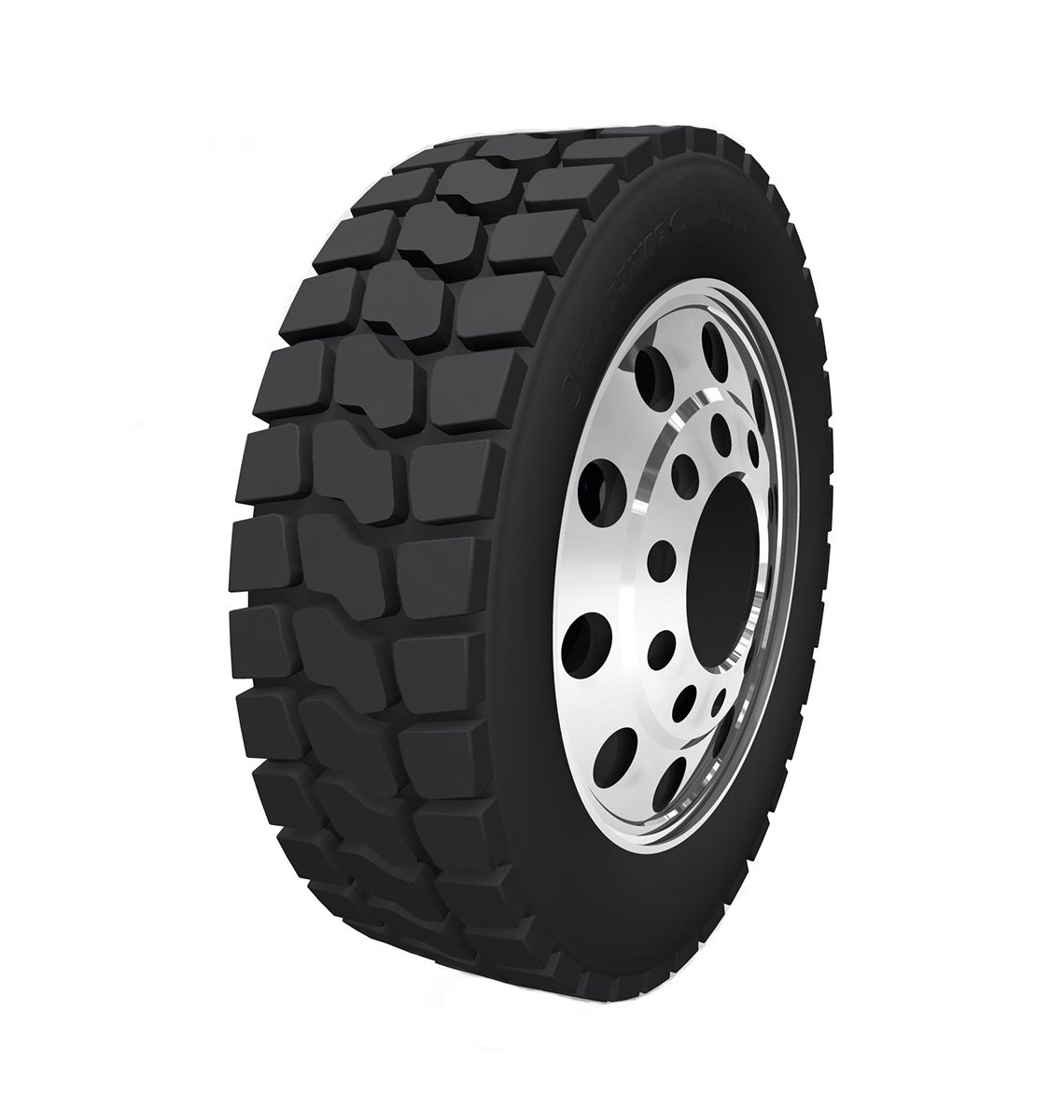

•Suitable for all wheel positions of earth mover or mine vehicle on hazard road and off road condition.
•Streamline pattern combine with rigid tread chunks provides excellent traction and driving performance.
•Reinforced tread block enhances its anti-rupture performance;
•Effectively reducing cracks groove bottom, thereby resulting in a safer driving experience.
| Size | Ply Rating | Spd | Load Index (single/double) | Measure Rim (inch) | Max Load(kg) | Pressure(Kpa) | Inflated Dimensions | Tread Depth (mm) | Min. DualSpacin g (mm) | |||
| Single | Dual | Single | Dual | SW | OD | |||||||
| 1000R20 | 18 | F | 149/146 | 7.50 | 3250 | 3000 | 930 | 930 | 278 | 1055 | 19.00 | 328 |
| 1100R20 | 18 | F | 152/149 | 8.00 | 3550 | 3250 | 930 | 930 | 293 | 1085 | 19.00 | 346 |
| 1200R20 | 18 | F | 154/151 | 8.50 | 3750 | 3450 | 830 | 830 | 315 | 1125 | 19.00 | 372 |
| 11R22.5 | 16 | L | 146/143 | 8.25 | 3000 | 2725 | 830 | 830 | 279 | 1050 | 19.00 | 320 |
| 12R22.5 | 18 | K | 152/149 | 9.00 | 3550 | 3250 | 830 | 830 | 300 | 1084 | 19.00 | 343 |
| 13R22.5 | 18 | L | 154/151 | 9.75 | 3750 | 3450 | 830 | 830 | 320 | 1124 | 23.00 | 360 |
| 295/80R22.5 | 16 | M | 150/147 | 9.00 | 3350 | 3075 | 830 | 830 | 298 | 1044 | 23.00 | 335 |
| 315/80R22.5 | 20 | K | 157/154 | 9.00 | 4125 | 3750 | 900 | 900 | 312 | 1076 | 23.00 | 351 |
| 11R24.5 | 14 | L | 146/143 | 8.25 | 3000 | 2725 | 720 | 720 | 279 | 1104 | 23.00 | 318 |
| 11R24.5 | 16 | L | 149/146 | 8.25 | 3250 | 3000 | 830 | 830 | 279 | 1104 | 23.00 | 318 |
