| Benefits | Vehicle |
|---|---|
 |
 |
•Safe and advance pattern design reduce rolling resistance and ensure tire fuel economy and high speed performance.

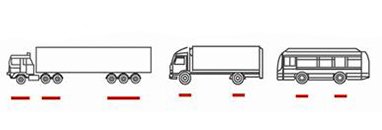

•Suitable for steering wheel position of middle/long distance trucks on good road conditions.
•Unique tread groove desgin effectively expels stones from tire groove.
•5 linear grooves combine with steel ply provide excellent direction driving performance and pervent untire wear.
| Size | Ply Rating | Spd | Load Index (single/double) | Measure Rim (inch) | Max Load(kg) | Pressure(Kpa) | Inflated Dimensions | Tread Depth (mm) | Min. DualSpacin (mm) | |||
| Single | Dual | Single | Dual | SW | OD | |||||||
| 11R22.5 | 14 | L | 144/142 | 8.25 | 2800 | 2650 | 720 | 720 | 279 | 1050 | 16.50 | 320 |
| 11R22.5 | 16 | L | 146/143 | 8.25 | 3000 | 2725 | 830 | 830 | 279 | 1050 | 16.50 | 320 |
| 11R24.5 | 14 | L | 146/143 | 8.25 | 3000 | 2725 | 720 | 720 | 279 | 1104 | 16.50 | 318 |
| 11R24.5 | 16 | L | 149/146 | 8.25 | 3250 | 3000 | 830 | 830 | 279 | 1104 | 16.50 | 318 |
| 285/75R24.5 | 14 | M | 144/141 | 8.25 | 2800 | 2575 | 760 | 760 | 283 | 1050 | 16.50 | 318 |
| 285/75R24.5 | 16 | L | 147/144 | 8.25 | 3072 | 2800 | 830 | 830 | 283 | 1050 | 16.50 | 318 |
