•Suitable for drive positions.
•Mixed deep tread block,widened tread, increased grip performance.
•Design for on all road of non-paved roads.

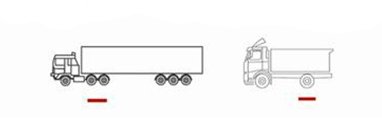

| Benefits | Vehicle |
|---|---|
 |
 |
•Suitable for drive positions.
•Mixed deep tread block,widened tread, increased grip performance.
•Design for on all road of non-paved roads.
| Size | Ply Rating | Spd | Load Index (single/double) | Measure Rim (inch) | Max Load(kg) | Pressure(Kpa) | Inflated Dimensions | Tread Depth (mm) | Min. DualSpacin g (mm) | |||
| Single | Dual | Single | Dual | SW | OD | |||||||
| 12R22.5 | 18 | M | 152/149 | 9.00 | 3550 | 3250 | 830 | 830 | 300 | 1084 | 23.00 | 343 |
| 13R22.5 | 18 | K | 154/151 | 9.75 | 3750 | 3450 | 830 | 830 | 320 | 1124 | 23.00 | 360 |
| 315/80R22.5 | 20 | K | 157/154 | 9.00 | 4125 | 3750 | 900 | 900 | 312 | 1076 | 23.00 | 351 |
